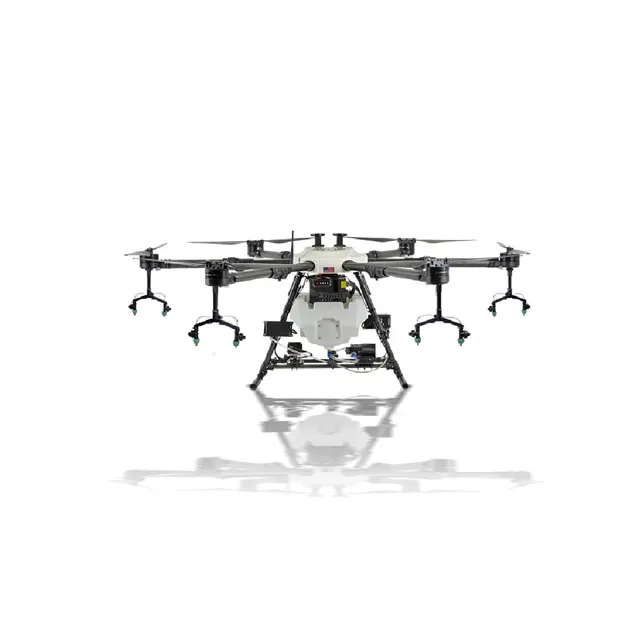

The Hylio AG-216 is an advanced agriculture drone designed to enhance crop health and field productivity. It combines precise aerial surveillance with targeted application capabilities, streamlining farming operations by delivering accurate data and treatment solutions. This drone is ideal for farmers looking to optimize their operations, reduce waste, and improve crop yields through technology.
The AG-216 is built with aerospace-grade materials and redundant subsystems to ensure reliability and durability. Its autonomous flight capabilities, coupled with real-time data analysis, provide farmers with the insights they need to make informed decisions and manage their crops effectively. The Hylio AG-216 is a comprehensive solution for modern precision agriculture, offering a blend of efficiency, accuracy, and ease of use.
Key Features
The Hylio AG-216 features a precision spraying system that allows for targeted application of pesticides, herbicides, and fertilizers. This system reduces waste and minimizes environmental impact by adjusting spray patterns and volume in real-time, based on flight speed and altitude. The result is uniform coverage and optimal droplet size, ensuring that crops receive the precise amount of treatment they need.
Equipped with advanced GPS and mapping technology, the AG-216 can autonomously navigate pre-set flight paths. Its dual RTK-compatible GPS units provide centimeter-level precision, ensuring thorough coverage and consistent application. The drone also features obstacle avoidance technology, using multiple radar sensors to detect and avoid obstacles in real-time, enhancing operational safety.
The AG-216 offers high-resolution crop monitoring through high-definition video streaming. This allows farmers to visually assess crop health in real-time, identifying potential issues early and taking corrective action promptly. The drone is also compatible with optional rotary atomizer nozzles, offering further flexibility in application methods.
The Hylio GroundLink Controller provides seamless access to both autonomous and manual controls. This all-in-one controller features a 13.3" Windows-based tablet, a 2.4 GHz radio, and an integrated ergonomic controller, making it easy to plan and execute flight missions. The AG-216 can also command up to three UAS from a single ground station, further increasing operational efficiency.
Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (arms unfolded) | 67x59x24 inches |
| Dimensions (arms folded) | 35x42x24 inches |
| Weight (without batteries) | 39 lbs (15.9 kg) |
| Wheelbase | 67 in |
| Operating Voltage | 12S (44.4 V) |
| Maximum Flight Altitude | 15,000 ft MSL |
| Flight Time (Full Payload) | approx. 8 min |
| Flight Time (Mixed) | approx. 12-15 min |
| Flight Time (No Payload) | approx. 20 min |
| Battery Type | 1 x 12S 22 Ah (44.4 V) Intelligent LiPo Battery |
| Battery Weight | 13.5 lb (6.1 kg) |
| Tank Capacity | 4.5 gallons (16 liters) |
| Maximum Payload Weight | 52.5 lb |
| Effective Swath Width | 15 – 25 ft (7.6 meter) |
Use Cases & Applications
Farmers use the Hylio AG-216 for precision spraying of pesticides, herbicides, and fertilizers. This targeted application reduces waste and minimizes environmental impact, while ensuring that crops receive the precise amount of treatment they need. The drone is particularly useful for crops with sensitive growing and fruit development periods, as it allows for precise and timely applications.
The AG-216 is also used for crop health monitoring, providing high-resolution imagery that allows farmers to visually assess crop health in real-time. This enables them to identify potential issues early and take corrective action promptly, preventing crop loss and improving yields. The drone's autonomous navigation capabilities ensure thorough coverage, even in large-scale operations.
With the optional spreader attachment, the AG-216 can be used for seeding or granular product application. This offers farmers versatility in application methods, allowing them to use the drone for a wide range of tasks. The drone is effective for both small-scale and large-scale operations, making it a valuable tool for farmers of all sizes.
Strengths & Weaknesses
| Strengths ✅ | Weaknesses ⚠️ |
|---|---|
| Precise application of pesticides, herbicides, and fertilizers reduces waste and environmental impact. | Flight time with full payload is approximately 8 minutes, requiring frequent battery changes. |
| Autonomous navigation with centimeter-level precision ensures thorough coverage and consistent application. | Maximum flight altitude is 15,000 ft MSL, with a reduction in payload capacity at higher altitudes. |
| Real-time obstacle avoidance enhances operational safety. | RTK base station for centimeter-level precision is sold separately. |
| High-resolution crop monitoring allows for early detection of potential issues and timely corrective action. | Initial setup and flight path programming are required. |
| Can control up to three UAS from a single ground station, increasing operational efficiency. | Training is recommended to ensure safe and effective operation. |
| Ability to dispense both liquid and solid payloads provides versatility in application methods. |
Benefits for Farmers
The Hylio AG-216 offers significant time savings by automating spraying and monitoring tasks. Its precision application capabilities reduce waste, leading to cost savings on pesticides, herbicides, and fertilizers. By enabling early detection of crop health issues and precise treatment, the AG-216 contributes to improved crop yields. Its sustainable design minimizes environmental impact, aligning with modern farming practices.
Integration & Compatibility
The Hylio AG-216 is designed to integrate seamlessly into existing farm operations. It collects data that can be analyzed to inform decision-making on crop management. The drone is RTK-compatible, allowing for centimeter-level precision when used with a separate RTK base station. It works with any TeeJet or similar style nozzle tips and is compatible with optional rotary atomizer nozzles.
Frequently Asked Questions
| Question | Answer |
|---|---|
| How does this product work? | The Hylio AG-216 utilizes GPS and mapping technology for autonomous flight, along with a precision spraying system that adjusts in real-time. Radar sensors enable obstacle avoidance, and high-definition video streaming allows for real-time monitoring of crop health during operation. |
| What is the typical ROI? | The AG-216 reduces operational costs by minimizing pesticide waste and optimizing application, leading to increased crop yields and a faster return on investment. Its autonomous capabilities also save time and labor costs. |
| What setup is required? | The AG-216 requires initial setup, including battery charging and flight path programming. The drone comes with the Hylio GroundLink Controller, which facilitates flight planning and mission execution. |
| What maintenance is needed? | Regular maintenance includes cleaning the nozzles, checking for wear and tear on propellers, and ensuring the battery is in good condition. Periodic inspections of the drone's structural components are also recommended. |
| Is training required to use this? | Yes, training is recommended to ensure safe and effective operation. Hylio provides training resources and support to help users become proficient in using the AG-216. |
| What systems does it integrate with? | The AG-216 is designed to integrate with existing farm management systems through data collection and analysis. It is RTK-compatible, allowing for centimeter-level precision when used with a separate RTK base station. |
Pricing & Availability
Indicative price: 42,100 CAD. The pricing of the Hylio AG-216 can be influenced by factors such as configuration options and any additional implements chosen. For detailed pricing information and availability in your region, contact us via the Make inquiry button on this page.
Support & Training
Hylio provides comprehensive support and training resources to ensure users can effectively operate and maintain the AG-216. These resources include online documentation, video tutorials, and technical support. For more information on support and training options, contact us via the Make inquiry button on this page.
